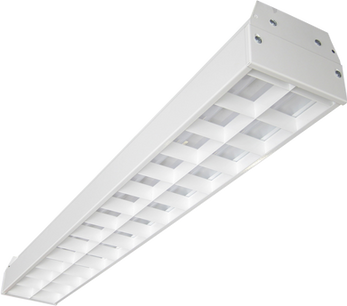

ECB-LED

The ECB-LED has been engineered specifically for industrial, warehousing and retail environments where high lumen output alone is not enough. In these demanding applications, the real challenge lies in delivering powerful illumination while maintaining visual comfort and controlling glare at working level.

Manufactured in our Brisbane facility, every ECB-LED luminaire is assembled, tested and quality controlled to rigorous standards, ensuring consistency not only in performance, but in the materials and construction methods used throughout the product.

The body is fabricated from robust 0.75 Zincseal alloy and incorporates a carefully engineered air gap between the luminaire housing and the gear compartment. This design assists thermal management and contributes significantly to extending the operational life of the internal componentry, a critical consideration in high-duty-cycle environments.

Designed for versatility across a range of architectural and industrial applications, ECB-LED may be specified with rod suspension, chain suspension or surface-mounted configurations.

Features

  • Optic: White directional low glare louvre

  • Mounting Type: Suspended | Surface Mount

  • Finish: White

  • Warranty: 5 Years

  • CRI: >80

  • CCT: 3000K | 4000K

  • Colour Consistency (LED Module): 3 SDCM

  • Lumen Output (Combined Board): 4880 - 17600lm

  • Lifetime: 70,000 Hours

  • UGR: <22

Application

Commercial

Product Dimensions

Resources

Data Sheet

Photometrics
