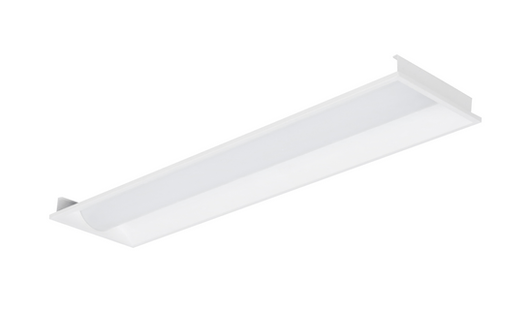

EVO-CDT

Curved Diffused Troffer

EVO-CDT is designed for architects who think as much about space as they do about light.
Conceived as a premium recessed luminaire, EVO-CDT delivers high-efficiency illumination with a level of visual comfort that allows architecture to remain the focus. Its refined optical system combines advanced reflector geometry with precision engineering to distribute light evenly—enhancing vertical surfaces and giving depth and clarity to the space. Developed for contemporary commercial and institutional interiors, EVO-CDT supports environments where walls, circulation zones, and people matter as much as the floor plan. The result is light that feels deliberate rather than applied—quietly elevating the spatial experience without announcing itself.

Features

Optics: Curved Reflector, beam angle 80°

Mounting: Recessed into a T-Ba r | Plaster Kit

Finish: White

Warranty: 5 Years

CRI: >80 | >90 (Standard) | >97 on request

CCT: 3000K | 3500K | 4000K

Colour Consistency (LED Module): 3 SDCM

Lifetime: 50,000 Hours

UGR: <19 (Standard) | <22 optional

Application

Commercial, Conference Rooms, Education Facilities, Health Facilities, Office, Retail

Product Dimensions

Fitting Dimensions

(6x3) L: 590mm | W: 290mm | H: 62mm

(6x6) L: 590mm | W: 590mm | H: 62mm

(12x3) L: 1190mm | W: 290mm | H: 62mm

(12x6) L: 1190mm | W: 590mm | H: 62mm

*All dimensions shown are in mm, unless otherwise mentioned

Resources

Data Sheet

Photometrics


IES File V2.png

EVO-CDT, 12x6, 50W, CRI>90, 4000K

IES File V2.png

EVO-CDT, 12x3, 35W, CRI>90, 3000K

IES File V2.png

EVO-CDT, 6x6, 35W, CRI>90, 4000K

IES File V2.png

EVO-CDT, 6x3, 20W, CRI>90, 4000K

IES File V2.png

EVO-CDT, 12x6, 50W, CRI>90, 3000K

IES File V2.png

EVO-CDT, 12x3, 35W, CRI>90, 4000K

IES File V2.png

EVO-CDT, 6x6, 35W, CRI>90, 3000K

IES File V2.png

EVO-CDT, 6x3, 20W, CRI>90, 3000K
