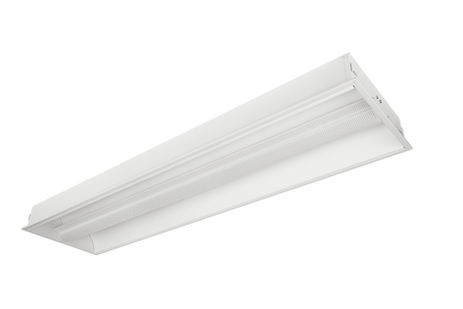

EVO-IDT

Indirect Diffused Troffer

EVO-IDT is light you feel before you notice it. Designed as a refined architectural solution, EVO-IDT delivers soft, indirect illumination that elevates interiors without imposing on them. By directing light upward and allowing it to reflect gently back into the space, it creates an atmosphere that is calm, balanced, and visually generous. Engineered for comfort and wellbeing, EVO-IDT minimises glare while enhancing spatial clarity—making ceilings appear lighter, walls more present, and rooms more considered. The effect is not theatrical, but assured: light that supports the architecture rather than competing with it.

Features

Optics: Polycarbonate frosted lens, beam angle 120°

Mounting: T-Bar | Recessed or surface mounted on request

Finish: White

Warranty: 5 Years

CRI: >80 | >90 (Standard) | >97 on request

CCT: 3000K | 3500K | 4000K

Colour Consistency (LED Module): 3 SDCM

Lifetime: 50,000 Hours

UGR: <22

Application

Commercial, Conference Rooms, Education Facilities, Health Facilities, Office, Retail

Product Dimensions

Fitting Dimensions

(6x6) L: 595mm | W: 595mm | H: 95mm

(12x3) L: 1195mm | W: 295mm | H: 95mm

(12x6) L: 1195mm | W: 595mm | H: 95mm

*All dimensions shown are in mm, unless otherwise mentioned

Resources

Data Sheet

Photometrics


IES File V2.png

EVO-IDT, 12x6, 50W, CRI>90, 4000K

IES File V2.png

EVO-IDT, 12x3, 35W, CRI>90, 3000K

IES File V2.png

EVO-IDT, 6x6, 35W, CRI>90, 3000K

IES File V2.png

EVO-IDT, 12x6, 50W, CRI>90, 3000K

IES File V2.png

EVO-IDT, 6x6, 35W, CRI>90, 4000K

IES File V2.png

EVO-IDT, 12x3, 35W, CRI>90, 4000K
