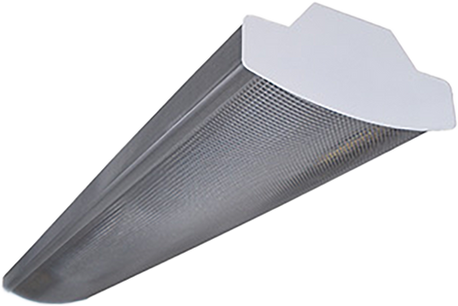

RDL-LED

​

RDL-LED has been developed specifically for commercial, education and infrastructure environments where visual comfort and reliable performance are essential. Designed to provide controlled, comfortable illumination for administrative and learning spaces, it combines optical efficiency with long-term practicality.

Using either a high-transmittance K5 patterned diffuser or a K19 prismatic diffuser in a easy to clean wrap-around form factor, RDL-LED delivers managed glare performance with UGR<19, while producing outputs from 1220 to 8800 lumens. Available in 3000K or 4000K colour temperatures, the system can be tailored to suit the visual requirements of the application.

Because longevity is as important as performance, RDL-LED incorporates a future-proof replaceable gear tray, extending service life while simplifying ongoing maintenance. The luminaire is manufactured with a powder-coated white metal body, with alternative finishes available on request.

Suitable for direct ceiling installation, rod suspension, or in-line continuous mounting applications, RDL-LED provides specifiers with a versatile lighting solution designed for both present requirements and future adaptability.

Features

Optics: High transmittance K5 patterned K19 prismatic diffuser

Mounting Type: Surface Mounted | Rod Suspended

Finish: White | Custom on request

Warranty: 5 Years

CRI: >80

CCT: 3000K | 4000K

Colour Consistency (LED Module): 3 SDCM

Lumen Output (Combined Board): 1220 - 8800lm

Lifetime: 70,000 Hours

UGR: >19

Application

Commercial, Education Facilities, Office

Product Dimensions

Fitting (600)

W: 210 | L: 575 | H: 98

Fitting (1200)

W: 210 | L: 1175 | H: 98

*All dimensions shown are in mm, unless otherwise mentioned


Resources

Data Sheet

Photometrics
