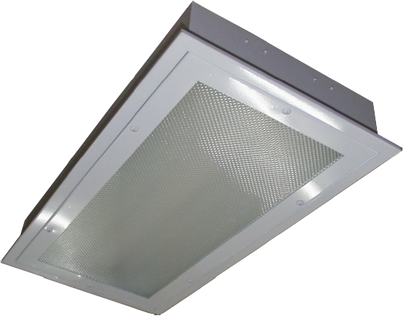

VPBS-LED
VPBS is a vandal-proof cleanroom luminaire specified where failure is not an option.
Developed for the highest-demand healthcare environments, it is equally suited to laboratories and commercial kitchens. COI-compliant meeting < 3.3, with cyanosis-compliant options for critical clinical areas are available on request.
Manufactured in our ISO 9001 Brisbane facility, VPBS is built under full control - materials, testing, and assembly - to ensure consistent quality. A 0.75 mm zincseal body, heavy-duty neoprene gasket, and 6 mm impact-resistant polycarbonate lens deliver a fully sealed IP-rated solution. Security screws, safety lanyards, and an IK10 rating reduce vandalism risk without compromising serviceability.
Designed with a future-proof gear tray, VPBS supports long-term performance and sustainable specification decisions.
Features
Optics: High impact 6mm polycarbonate lens
Mounting Type: Plaster recessed
Finish: White (Standard) | custom on request
Warranty: 5 Years
CRI: >80 (Standard) | >90 (Optional) |Higher CRI available on request
CCT: 3000K | 4000K | Other on request
Colour Consistency (LED Module): 3 SDCM
COI: On request ( < 3.3 for 3500K and 4000K)
Output: 1220 - 8800lm
Lifetime: 70,000 Hours
UGR: >22
Construction: Heavy duty neoprene gasket ensuring dust, insect and a splsh proof seal. High impact 6mm polycarbonate lens.
Future proof replacable gear tray
Application
Education Facilities, Commercial, Health Facilities, Kitchens, Laboratories, Office
Product Dimensions
Fitting (6x3)
W: 338 | L: 648 | H: 93
Fitting (6x6)
W: 635 | L: 645 | H: 93
Fitting (12x3)
W: 338 | L: 1262 | H: 93
*All dimensions shown are in mm, unless otherwise mentioned
