LX26-CL

Luxury in lighting is measured not by brightness, but by control.

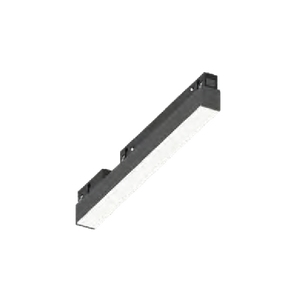

The LineX Comfort Light Module is a refined linear luminaire for the 48V magnetic track system, designed to deliver calm, disciplined illumination with architectural intent.

Its slender 22 mm wide profile, available in lengths of 284, 564, 844, and 1124 mm, is defined by a full-length opal diffuser that produces a controlled 65° distribution of CRI>90 light, balancing softness with precision to ensure visual comfort without loss of definition.

Performance scales with the design. The module delivers 380–1600 lumens of luminous flux (depending on length and wattage), allowing light levels to be tailored from subtle ambient layers to more substantial general illumination.

Effortlessly positioned along the magnetic track, it enables architects to compose light as a measured, continuous element, quiet, comfortable, and exact.

A considered linear solution, engineered to deliver comfort, control, and quiet architectural sophistication.

Features

Optics: Microprismatic 65° beam angle

Finish: White | Black

Mounting: Track

CRI >90

CCT: 3000K | 4000K

Colour Consistancy: 3 SDCM

Lifetime:  50,000 Hours

Application

Commercial, Office, Residential, Retail

Product Dimensions

Fitting Dimensions

Overall Length: 284 | 564 | 844 | 1124

Width: 22

Height: 42

Driver Dimensions: 223 x 22

*All dimensions shown are in mm, unless otherwise mentioned

Resources

Data Sheet

Photometrics
