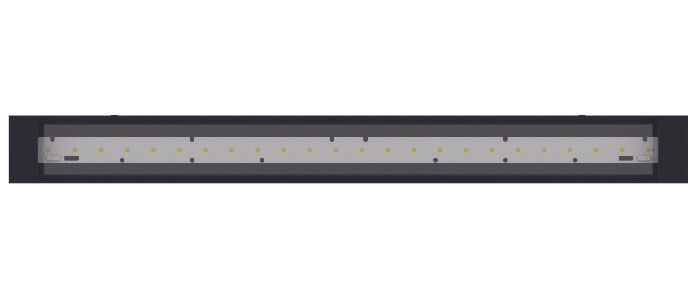

VX


VEKTA Extreme (VX) is breaking the barrier of Aesthetic IP and IK rated fittings. VX has been designed and tested to handle everything that can be thrown at it and has achieved an IK10 and IP66 rating. These results were achieved through the double walled, dual extrusion design.
The VX has been identified as the bridge between an architectural and an industrial luminaire. The compact external profile offers a streamlined aesthetic, while the clear anti-yellowing polycarbonate internal extrusion houses the electronics. A further benefit of the VX is that it is assembled in-house, allowing for custom colours and lengths (up to 3.5m) to be achieved without any major impacts on the lead time.
With its IP and IK rating as well as the carefully designed profiles, the VEKTA Extreme can be used in a broad range of projects. Key environments, but not limited to include; Transportation Hubs (above or below ground), Education Precincts, Industrial Parks, Parking Structures & Commercial Buildings. Further, adding tamper resistant fasteners allows it to be a competitive linear solution in vandalism prone areas as well as high security facilities.
Features
Complies with relevant Australian Standards
Diverse possibilities
Even light distribution
Provided shop drawings
Australian manufactured
Max length = 3.5m (dependant on optic options)
Optics
Opal Diffuser | Linear Lens (30°, 60°, 90°, 100°, 30°x60°, Assymetric, Double Assymetric, Wall Grazing)
Mounting
Surface Mounted | Wall mounted | Pendant
Driver Options
Non-Dim (DO) | DALI (DA) | Switch-Dim (SW) | Casambi (CA) | Tunable White (T2)
Finish Options
